RIGHT

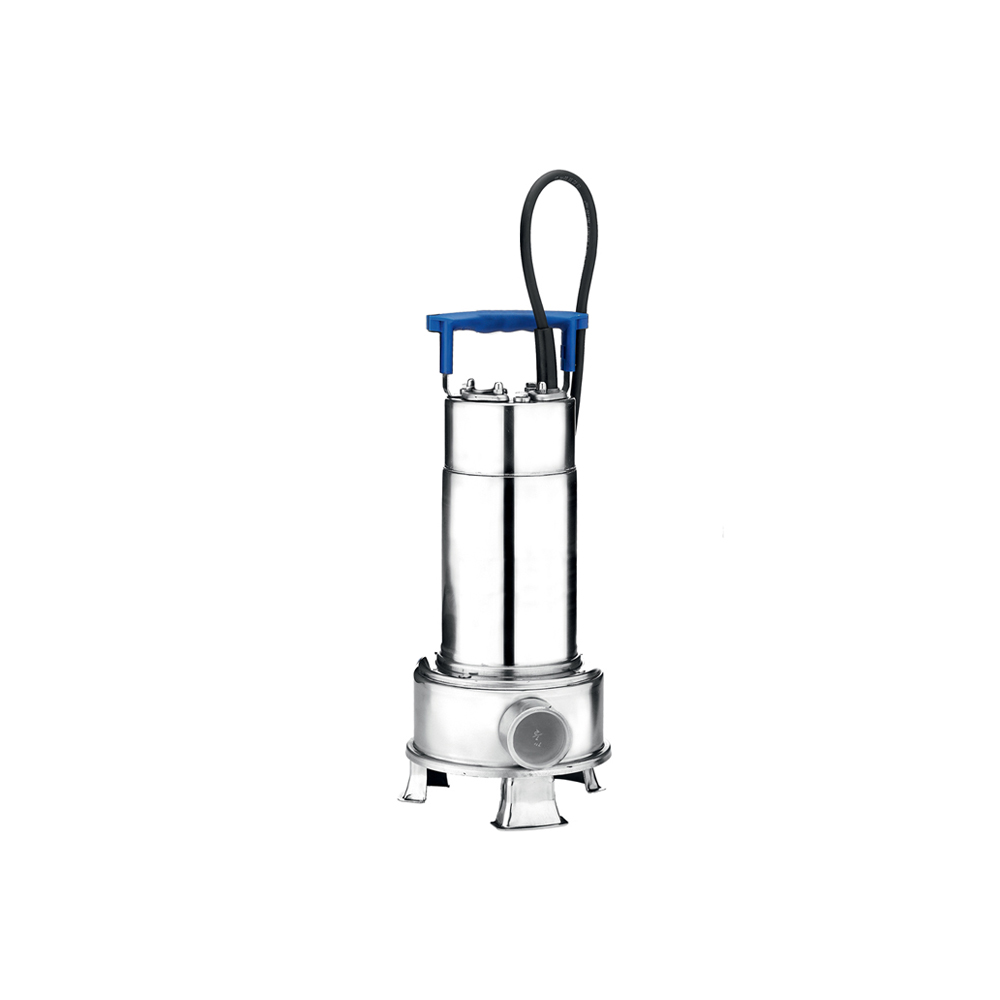

RIGHT Submersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations. Suitable for domestic applications and large industrial wastewater lifting installations
Description
Submersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations.

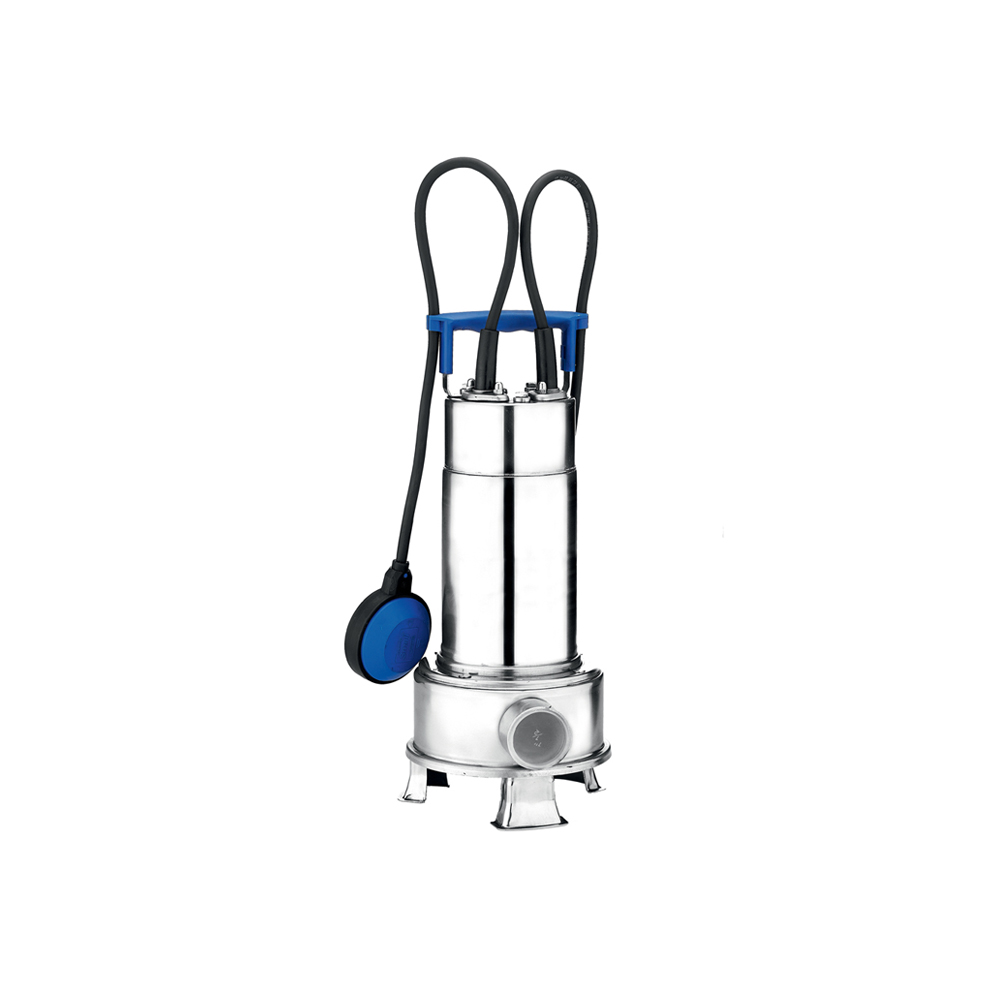

The RIGHT electric pump is also available with a float switch that allows for wide use.
For further technical information see the Databook
• Handling of soiled liquids containing solid and/or filamentary substances in suspension
• Emptying of seepage water
• Handling of dirty wastewater (sanitary)
• Emptying of cesspits and discharge to sewers
Technical data
| Flow rate | up to 18 m³/h |
| Total head | up to 9.5 m |
| Max. temperature of the liquid | +50°C |
| Poles | 2 |
| Max. solids passage | 35 mm |
| Insulation class | F |
| Protection degree | IPX8 |
| Voltage | Single-phase 1~230V ± 10% Three-phase 3~400V ±10% |
| Max. immersion | 7 m with 10 m cable 2 m with 5 m cable |
Materials
| Pump body | Stainless steel AISI 304 (EN 1.4301) |
| Impeller | Stainless steel AISI 304 (EN 1.4301) |
| Shaft | Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid) |
| Mechanical seal | upper part in Carbon/Ceramic/NBR (motor side) lower part in Silicon Carbide/NBR (pump side) |
